Balloon Catheters

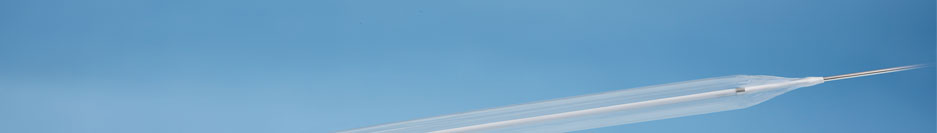

High Pressure 0.035" OTW Balloon Catheter

High pressure

A high pressure balloon catheter robustly engineered to dilate resistant lesions in complex anatomy.

Flexible and conformable

Flexible balloon material designed to conform to vessel curvature, minimizing vessel straightening during high pressure inflations

Controlled compliance

Balloon material and design aims to minimize axial and radial expansion; avoiding excessive barotrauma; and provide excellent stability during inflation

Product Specifications

OTW	Catheter type
0.035"	Recommended guide wire
Soft, short, tapered	Tip
Nylon/Pebax, controlled compliance	Balloon material
3-fold (ø 3 - 9 mm); 5-fold (ø 10 - 12 mm)	Balloon folding
2 radiopaque markers	Balloon markers
ø 3.0 - 12.0 mm; L: 20 - 100 mm	Sizes
5.9F, co-axial	Shaft
40 and 75 cm	Usable length
6F: ø 3.0 - 8.0 mm; 7F: ø 9.0 - 10.0 mm; 8F: ø 12.0 mm	Min. sheath size
14 atm (ø 3.0 - 8.0 mm); 12 atm (ø 9.0 - 12.0 mm)	Nominal Pressure (NP)
up to 27 atm	Rated Burst Pressure (RBP)
